The optimal solution engineered by elite 3 ply corrugated cardboard production line suppliers integrates a high-speed cassette-type single facer, computerized thermal management, and a full-servo dry end to deliver perfectly flat, structurally rigid single-wall board at sustained speeds up to 300 m/min (984 FPM). For modern Tier-2 and Tier-3 box plants processing over 120,000 square meters daily—primarily targeting high-volume e-commerce, FMCG (Fast-Moving Consumer Goods), and food packaging—a fully automated, servo-driven 3-ply line is mandatory to minimize paper transition waste and maximize output. For facilities producing between 40,000 and 80,000 square meters of specialized, short-run packaging, a modular, rapidly configurable line offers the highest return on capital and floor plan flexibility.

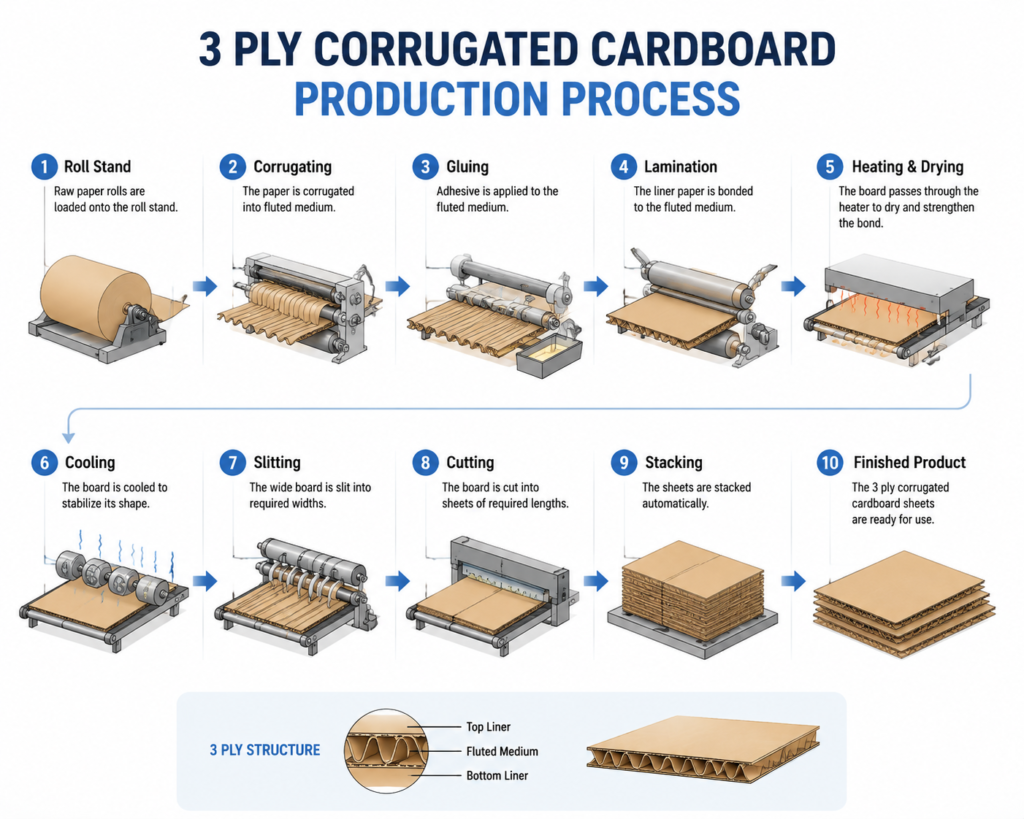

A 3 ply corrugated cardboard production line (Single Wall) is the industrial foundation for manufacturing high-strength shipping and moving boxes. Leading suppliers like Guangzhou Smart Machinery engineer these lines to bond a fluted medium between two liners using fingerless vacuum suction technology. This preserves the Edge Crush Test (ECT) value of the board. Modern 3-ply lines support production speeds of 150-300m/min and include Industry 4.0 PLC controls for automated order changeovers, ensuring maximum board flatness and vertical stacking strength for RSC box production.
Fast Check Product: https://gzsmartmachinery.com/product/corrugated-cardboard-production-line/
| Component Section | Technical Specification | Manufacturing Advantage |
| Production Speed | 150-300m/min | Optimized for industrial-scale RSC fulfillment. |
| Max Working Width | 1400mm-2800mm | Handles large-format moving box blanks. |
| Single Facer Type | Vacuum Suction (Fingerless) | Ensures uniform flute height; no pressure marks. |
| Heating Method | High-Pressure Steam / Induction | Rapid starch bonding for 100% fiber tear. |
| Cutting Precision | ±1.0 mm Servo-Driven | Minimizes trim waste and ensures square boxes. |
| Control System | Siemens / Mitsubishi PLC | Global part availability and IIoT diagnostics. |
| Flute Profiles | A, B, C, E, F (Customizable) | Versatile for retail and heavy-duty shipping. |
Board warping is the primary cause of downtime in downstream printing and slotting. High-quality 3 ply production line suppliers integrate automated moisture control and pre-heating cylinders. By balancing the tension and temperature of the liners and medium before bonding, the machine ensures a perfectly flat 3-ply sheet, which is essential for high-speed automatic folder gluers used in moving box production.
Maintaining the structural integrity of the flute is vital for the Box Crush Test (BCT). Guangzhou Smart Machinery utilizes Non-Crush Vacuum Transfer in the Single Facer and Double Backer units. This technology holds the paper via suction rather than physical pressure rollers, ensuring the internal flutes are never deformed during the bonding process, preserving 100% of the board’s designed strength.
What is the Best 3 Ply Corrugated Cardboard Production Line for Modern Box Plants?
When Chief Technology Officers (CTOs) and plant managers evaluate capital expenditures for a new corrugator, the definition of “best” must transcend a brochure’s top speed. The optimal 3-ply corrugator is a highly synchronized thermal-mechanical system engineered to perfectly bond one fluting medium to two linerboards. The absolute best system guarantees perfect board flatness, maintains maximum flute structural integrity, and eliminates unplanned downtime over a demanding 15-to-20-year operational lifecycle.
Modern corrugated facilities face immense pressure to secure contracts with global retail giants. Passing rigorous supplier quality and structural audits mandated by companies like Amazon, Coca-Cola, and Nestlé requires packaging machinery capable of flawless execution. These global entities demand zero-defect e-commerce parcels, perfectly square display boxes, and immaculate high-end color printing surfaces.
Crucially, downstream converting quality begins at the corrugator. If your 3-ply line produces warped board or suffers from inconsistent edge adhesion (“soft edges”), your downstream flexo folder gluer cannot physically achieve the required ± 0.5 mm (± 0.02 inches) print registration. To guarantee absolute quality for single-wall production, the best lines rely on three foundational engineering pillars:
- Intelligent Moisture and Thermal Management: Flat 3-ply board requires perfectly balanced moisture and tension across three separate webs of paper. Advanced systems utilize automated wrap-angle pre-conditioners to dynamically adjust heat and steam penetration based on the condition of each paper reel. This proactive thermal management prevents the severe “bow-warp” or “cross-warp” that plagues manually controlled, budget lines.
- Non-Crush Conveying for Structural Integrity: Once the single-wall board is bonded at the double backer, it must be protected. Outdated heavy pull rolls and mechanical stackers mercilessly compress the flutes, destroying up to 15% of the board’s Edge Crush Test (ECT) and Box Compression Test (BCT) strength before it reaches the printers. Modern systems utilize advanced vacuum traction and non-crush feeding belts at the dry end to transport the board safely.
- Heavy-Duty Metallurgy: Unplanned corrugator downtime starves the entire factory. Top-tier machinery utilizes massive, vibration-dampening heavy-wall cast iron frames and oversized premium bearings to handle continuous 24/7 operations without structural fatigue.
Full-Servo Drive vs. Mechanical Drive: Engineering the Core of Precision
The internal drive architecture of your wet-end and dry-end equipment dictates your plant’s long-term profitability. The technical debate between full-servo architectures and traditional mechanical gear-driven systems is fundamentally a discussion about precision decay, dynamic error compensation, and lifecycle maintenance costs.
The Reality of Mechanical Drives (The Precision Decay Curve) Budget-focused mechanical lines rely on a sprawling network of long drive shafts, chains, mechanical cams, and oil baths to synchronize the single facer, double backer, slitter scorer, and cut-off knife. While the initial CapEx appears attractive, mechanical systems suffer from the inevitable laws of physics: metal fatigue and gear backlash. Over millions of linear meters of high-speed production, metal-on-metal wear creates micro-inconsistencies. Within three years, a mechanical cut-off knife that originally held a 1.0 mm (0.04 inches) tolerance will degrade to a 2.5 mm (0.10 inches) variance. This hidden precision decay leads to chronic short sheets (instant scrap) or long sheets (wasting expensive paper trim).
The Full-Servo Advantage A full-servo architecture completely eliminates the traditional main mechanical drive shaft. Independent, high-torque servo motors are mounted directly to the critical traction rolls, slitter shafts, and rotary cut-off cylinders.
- Servo Synchronization Logic: The centralized programmable logic controller (PLC) uses ultra-high-resolution encoders to electronically gear the motors together. If a micro-deviation occurs in board speed, the servo drive detects the load change and corrects the rotational phase of the cut-off knife in milliseconds. This dynamic error compensation logic guarantees that sheet length accuracy remains absolute, regardless of operational speed.
- Vacuum Suction Pressure Calibration: Advanced servo technology extends to the single facer vacuum systems. Variable frequency drives (VFDs) automatically adjust the vacuum suction pressure precisely based on paper width and basis weight, ensuring the fluting medium is held perfectly against the corrugating roll for flawless glue application at 300 m/min (984 FPM).
- Advanced Metallurgy for Equipment Longevity: Independent servos drastically reduce mechanical shock throughout the driveline. When paired with corrugating rolls forged from premium Alloy Steel with tungsten surface hardening, and slitter scorer blades utilizing razor-sharp Tungsten Carbide, tool life increases by up to 400%. This practically eliminates the constant blade-change downtime that cripples budget operations.
How to Select the Right Machine Based on Regional Challenges
Global machinery deployment requires adapting precision engineering to local realities. Architecting massive 3-ply lines for international markets means that local environmental, infrastructural, and regulatory frameworks must dictate the machine’s final configuration.
North America
- Compliance Framework: Strict adherence to OSHA safety standards is non-negotiable. Installations require advanced perimeter light curtains, interlocked physical safety guards over all nip points, and cross-linked emergency stop matrices that instantly kill motor torque.
- Electrical Environment: Systems must be natively configured for 480V/60Hz heavy industrial power grids.
- Labor Dynamics: Severe labor shortages necessitate maximum dry-end automation, pushing the demand for fully computerized slitter scorers (order changes in < 1 second) and fully automated robotic stackers.
Europe
- Compliance & Sustainability: CE certification is an absolute legal requirement, demanding exhaustive risk assessments, electromagnetic compatibility (EMC) shielding, and strict noise emission controls. High regional energy costs drive the absolute necessity for regenerative servo drives (which feed braking energy back into the plant grid) and advanced closed-loop steam recovery systems.
- Electrical Environment: Standardized at 380V-400V/50Hz.
Southeast Asia & Coastal Regions
- Climate Challenges: Tropical humidity severely alters the moisture profile of kraft linerboard, causing catastrophic warping if not properly managed. During rigorous site inspections for packaging suppliers in these coastal environments, we mandate that 3-ply machines are equipped with oversized wrap-angle pre-heaters and high-capacity steam conditioning to forcefully drive moisture out of the paper prior to the bonding process.
Middle East
- Climate & Infrastructure: High ambient temperatures (frequently exceeding 45°C / 113°F) and fine airborne dust are the primary enemies of sensitive electronic components. Based on extensive deployments, we strictly specify electrical cabinets with IP54 or IP65 ratings. These must be completely sealed and equipped with heavy-duty industrial air conditioning units to protect the servo drives and PLCs from catastrophic thermal failure.
Inline Converting vs. Standalone Systems: Architecting Your Floor Plan
When upgrading a facility, plant managers must optimize how the massive output of single-wall board moves from the dry-end of the corrugator to the converting department.
The Standalone (WIP Buffer) Approach For most standard 3-ply operations producing RSC (Regular Slotted Carton) shipping boxes, the corrugator operates as a standalone entity, pushing finished stacks onto intelligent plastic chain conveyors.
- The Advantage: This creates a critical Work-In-Progress (WIP) buffer. The corrugator can run efficiently at maximum speed regardless of the setup times, die-changes, or minor stoppages happening at the downstream flexo printers or rotary die-cutters.
Direct Inline Systems (Micro-Flute Context) For specialty plants producing massive volumes of 3-ply micro-flutes (such as E or F flute) for high-end retail packaging or pizza boxes, the corrugator can be integrated directly inline with flatbed die-cutters.
- The Advantage: Immense reduction in factory floor space and WIP inventory. Board is formed and immediately die-cut in one continuous flow, slashing manual forklift handling and reducing labor costs significantly.
The Economics of Packaging: ROI, TCO, and Waste Reduction
Procurement based solely on the initial capital purchase price is a catastrophic error for a CTO. A true B2B investment strategy relies on a comprehensive Total Cost of Ownership (TCO) analysis. A 3-ply line that costs slightly more upfront but saves just 2% in raw material waste will generate millions in additional profit over a decade.
1. Lowering Raw Material Transition Waste Paper accounts for roughly 70% of a box plant’s total operating cost.
- The Calculation: If a plant processes 10,000 metric tons (22,046,000 lbs) of paper annually, a 2% reduction in waste yields 200 tons of saved paper. At an average of $600 per ton, that is $120,000 directly added to the bottom line every single year.
- The Solution: High-speed automated splicers operating at 250 m/min (820 FPM) with zero-tail splicing, combined with full-servo computerized slitter scorers, virtually eliminate the “transition waste” associated with manual roll changes and order setups.
2. Optimizing Board Strength to Downgrade Paper Weights Because non-crush traction systems and precise servo-tensioning protect the structural integrity of the flutes, you do not need to over-engineer the board. If an old mechanical dry-end crushes the flutes by 15%, you are forced to use heavier, more expensive linerboard simply to pass the client’s BCT audit. A modern precision machine preserves the ECT, allowing you to safely downgrade paper weights (e.g., from 150 GSM to 130 GSM) and slash raw material costs while delivering structurally superior boxes.
3. Utility Consumption (Steam and Electrical) Older corrugators hemorrhage steam and electricity. Modern systems utilize closed-loop steam management systems that recycle hot condensate back to the boiler, reducing fuel consumption by up to 20%. Concurrently, permanent magnet synchronous motors (PMSM) ensure that electrical power is only consumed when actively needed under load.
Common Procurement Mistakes to Avoid
In over two decades of global corrugated project delivery, we have witnessed the aftermath of poorly executed procurement decisions. Avoid these fatal pitfalls when specifying your new 3-ply line:
- Under-Sizing the Boiler and Steam Infrastructure: The thermal capacity of your steam system is the absolute speed limit of your corrugator. Buying a 300 m/min (984 FPM) machine but utilizing an outdated boiler that cannot maintain consistent barometric pressure will result in cold glue lines and catastrophic delamination at high speeds. The steam infrastructure must be upgraded simultaneously.
- Ignoring the Precision Decay Curve of the Dry-End: Buying a budget mechanical cut-off knife looks great on an initial CapEx spreadsheet. By Year 3, the cost of the extra trim waste required to compensate for erratic sheet lengths will far exceed the money “saved” on the purchase price. Always insist on a full-servo cut-off architecture.
- Failing to Verify Non-Proprietary Architecture: A machine is only as profitable as its spare parts availability. Ensure your supplier utilizes globally sourced, non-proprietary electronic components (e.g., standard Siemens PLCs, Yaskawa drives, SKF bearings) so that a failed generic sensor doesn’t shut down your factory while waiting for a proprietary shipment from the OEM.
FAQ
Q: What is the optimal production speed for a modern 3-ply corrugator? A: For high-volume tier-2 box plants, an optimal, stable cruising speed when producing standard single-wall board is between 200 m/min to 300 m/min (656 to 984 FPM), depending on paper quality and flute profile.
Q: How does servo technology improve the cut-off knife accuracy? A: Servo systems replace mechanical gears with high-speed electronic synchronization. The servo drive monitors the board speed via an encoder and adjusts the knife cylinder’s rotation in milliseconds, guaranteeing a cut-off accuracy of ± 1.0 mm (± 0.04 inches) at all speeds, which drastically reduces downstream trim waste.
Q: What utility requirements are necessary for a 3-ply installation? A: A high-speed 3-ply line requires a robust industrial electrical supply (typically 380V/50Hz or 480V/60Hz), a high-capacity industrial steam boiler capable of maintaining consistent pressure (10-13 Bar), and a reliable heavy-duty compressed air system.
Q: How does the corrugator affect printing precision? A: If a corrugator produces warped board or uneven caliper due to flute crushing, the downstream flexo printer will misfeed the sheets. Perfect, flat board from a high-end corrugator is the absolute prerequisite for achieving ± 0.5 mm printing registration consistency.
Q: Can a 3-ply line handle different flute profiles quickly? A: Yes. Modern lines feature cassette-type single facers. A factory can switch from a B-flute to a C-flute or E-flute roll in under 15 minutes utilizing an automated motorized trolley system.
Q: How long does it take to install and commission a complete 3-ply line? A: Depending on the factory’s foundation readiness and local utility infrastructure, a complete mechanical installation, electrical wiring, steam piping, and initial commissioning generally takes between 35 to 50 days, followed by rigorous Factory Acceptance Testing (FAT).
Selecting the right corrugating equipment is the definitive cornerstone of your plant’s operational efficiency and future profitability. To stay competitive, reduce raw material waste, and secure high-volume single-wall contracts with top-tier global brands, you need a heavy-duty thermal-mechanical system that guarantees precision and delivers an exceptional, measurable return on investment.
Ensure your next major capital investment dominates the market. Contact the leading 3 ply corrugated cardboard production line suppliers today to engineer a solution tailored exactly to your floor plan, local climate, and aggressive production targets.
