Evaluating a premium speciality folder gluer supplier requires an inspection of factory floor engineering capabilities, structural metallurgy, and motion control infrastructure. High-volume packaging plants processing complex box profiles—such as crash-lock bottoms, 4/6 corner boxes, and double-wall corrugated containers—cannot depend on unverified equipment assemblers. Operational profitability depends on minimizing mechanical downtime, eliminating changeover bottlenecks, and maintaining structural accuracy at maximum line velocities.

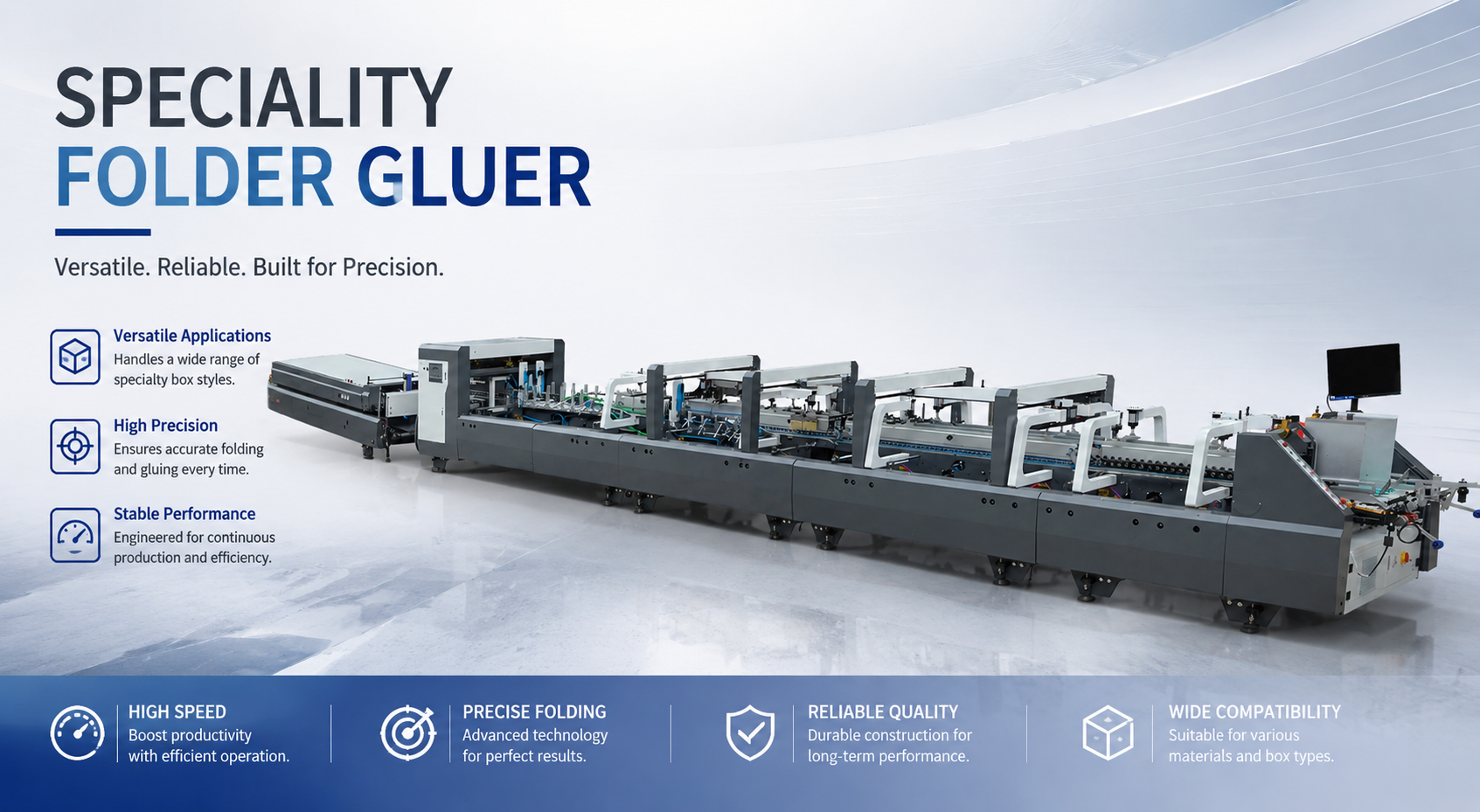

A speciality folder gluer is a modular post-press conversion system engineered to process complex, irregularly shaped packaging, including pharmaceutical mini-boxes, cosmetics sleeves, crash-lock bottoms, and 4/6 corner structural designs. Operating at speeds up to 400 m/min, these machines feature independent multi-axis servo-driven back-folding hooks, upper driven carrier belts, and electronic cold/hot glue jetting. Designed for high-mix, low-volume production, they deliver a precise folding tolerance of ±0.5 mm while integrating inline camera verification and high-speed box ejection systems for zero-defect compliance.
Fast Check Product: https://gzsmartmachinery.com/product/mini-flexo-folder-gluer/
| Machine Section | Specialized Tooling Configuration | Packaging Production Advantage (Pharma & Cosmetics) |
| Feeder Section | Suction belts + Adjustable electronic pile vibrator | Feeds asymmetrical or complex die-cut cosmetics blanks smoothly without overlapping or surface scuffing. |
| Side Register / Aligner | Independent servo-driven alignment bars | Re-squares irregular blanks to perfect parallelism before gluing, maintaining a strict folding tolerance of ±0.5 mm. |
| Mini-Box Device | Narrow micro-carriers and thin folding belts | Safely processes miniature medicine boxes down to a minimum unfolded blank size of 50 mm x 60 mm. |
| 4/6 Corner Back-Fold | Timeless electronic SmartServo rotational hooks | Executes flawless back-folding on multi-point retail and gift boxes without requiring a reduction in overall linear speed. |
| Surface Preservation | Soft-coated upper driven carrier belts | Eliminates friction marks, scuffing, and scuffs on high-gloss UV coatings and hot-stamped metallic foils. |
| Quality Control (QC) | Inline barcode scanner + Glue-line camera | Instantly reads matrix codes and monitors adhesive volume; automatically triggers a pneumatic flipper to eject out-of-spec boxes at 350 m/min. |
| Job Memory Recall | Computerized HMI motorization parameters | Stores over 500 irregular box templates, slashing high-mix tooling changeover times down to under 15 minutes. |
Processing tiny pharmaceutical packaging requires a specialized mini-box attachment module. Standard folder gluers use wide belts and heavy carrier guides that overwhelm small cardstocks. The specialty attachment substitutes these with ultra-narrow micro-folding belts (ranging from 10 mm to 15 mm in width) and thin, adjustable upper carriers. This configuration ensures continuous mechanical grip and absolute alignment, allowing the machine to safely fold and seal cosmetic or medicinal cartons with unfolded blank dimensions as small as 50 mm.

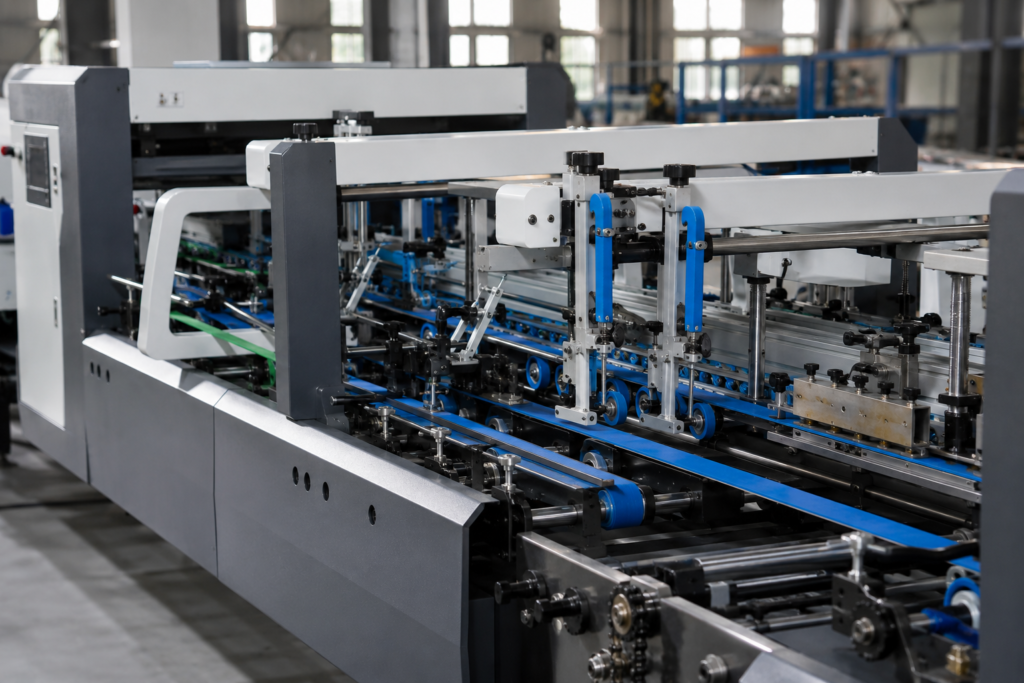

Protecting delicate cosmetic packaging surfaces relies on a combination of synchronized upper driven carriers and variable-speed outer folding belts. Traditional systems use passive top rollers that cause friction-slip against the substrate, scratching pristine matte laminations or hot foil surfaces. Driven top carriers move at the exact same linear velocity as the main transport belt, eliminating all relative motion friction. Additionally, utilizing soft-polymer or foam-coated contact belts absorbs tracking pressures, ensuring completely pristine structural finishes at 300 m/min.
Structural Engineering: Why Base Frame Metallurgy Dictates Creasing Accuracy
A speciality folder gluer operating at production speeds of 250 m/min / 820 FPM generates massive dynamic forces and continuous high-frequency harmonic vibrations. If the supplier constructs the machine base from thin, non-annealed welded plates or hollow square tubing, these structural vibrations cause minute deflections along the folding track. This mechanical instability directly leads to irregular score-line tracking, inconsistent scoring alignment, and immediate folding skew on the production line.
To prevent this structural degradation, Guangzhou Smart Machinery uses solid steel side frame walls with a thickness of 40 mm to 50 mm / 1.57 inches to 1.96 inches.
- Thermal Annealing Protocol: Every machined side frame plate undergoes a precise thermal stress-relief cycle inside a computer-controlled furnace at 600°C / 1112°F. This process eliminates internal crystalline structural stress caused by the initial rolling and flame-cutting phases.
- Geometric Precision Preservation: Stress-relieving ensures the steel frame maintains its absolute geometric parallelism over a decade of continuous three-shift operations. It eliminates the risk of structural warping that causes tracking errors in standard machines.
- Mass and Inertia Dampening: A standard 3000 mm / 118 inches section on our line has a total structural mass exceeding 12 metric tons / 26,455 lbs. This heavy mass dampens high-frequency operational harmonics, providing a stable platform for high-precision folding tools.
Motion Control Architecture: Decoupling Servo Logic from Mechanical Backlash
Legacy post-press finishing systems distribute torque using long hexagonal shafts, spur gears, universal joints, and chain drives linked to a central AC motor. Over months of operation, mechanical friction introduces physical play and gear backlash into the system. A backlash deviation of only 0.1 mm / 0.0039 inches at the primary drive gear can create an unacceptable ±2.0 mm / ±0.078 inches fishtailing error at high production speeds.
To eliminate these mechanical sources of error, modern speciality folder gluer systems decouple the primary driving components from physical shafts through electronic synchronization.
Each functional processing module—including the lead-edge vacuum feed table, the pre-folding carriers, the crash-lock bottom units, and the final delivery section—features independent, dedicated servo motors. A centralized Delta or Siemens PLC coordinates these drives using a real-time EtherCAT industrial fieldbus protocol.
The control system monitors high-resolution absolute encoders at millisecond intervals, automatically correcting the speed of individual belts if a sheet trails by even 0.15 mm / 0.0059 inches. This real-time synchronization keeps folding and gap tolerances within a strict ±0.5 mm / ±0.019 inches envelope, eliminating fishtailing and gap defects during high-volume production runs.
Surface Preparation for Advanced Adhesion: The Dual-Head Flap Sander Engineering
High-volume box plants frequently encounter bonding failures when processing advanced consumer packaging blanks. High-gloss UV varnishes, plastic film laminations, and water-resistant aqueous coatings prevent standard water-based adhesives from penetrating into the underlying paper fibers. Without proper surface modification, these coatings cause glue-line delamination during transport, which can lead to rejected shipments from major retail clients.
To resolve this issue, experienced machinery suppliers integrate high-speed mechanical surface prep modules directly into the entry guide section.
Our system features a specialized dual-head flap sander configuration running on independent high-frequency motors at 2800 RPM. The sanding heads utilize 80-grit tungsten carbide abrasive wheels that precisely score the outer edge of the glue flap.
This mechanical action removes the barrier varnish layer and exposes the porous kraft fibers without crushing the corrugated core. This mechanical abrasion increases the surface energy of the substrate, allowing the adhesive molecules to form a secure, high-strength bond that preserves box integrity across varying seasonal temperatures.
Global Component Interoperability & Regional Electrical Compliance
A common pitfall when purchasing finishing equipment is relying on suppliers that use proprietary or unbranded domestic control components. If a critical fieldbus module or digital encoder fails, the plant can face weeks of costly downtime while waiting for specialized overseas replacement parts to clear customs.
Guangzhou Smart Machinery mitigates this operational risk by utilizing an internationally recognized, open-source component supply chain:
- Precision Rolling Bearings: We specify heavy-duty NSK or HRB dual-sealed ball bearings across all high-velocity shafts to maintain low run-out tolerances.
- Linear Guiding Systems: All motorized carrier adjustments travel on self-lubricating HIWIN linear guide rails to ensure smooth, repeatable setups.
- Electrical Control Components: Control cabinets are equipped with Schneider contactors, Omron control relays, and Delta variable frequency drives (VFDs). This ensures maintenance teams can source identical replacement parts from local industrial distributors.
Additionally, we adapt our machine manufacturing to match local factory infrastructure and regional safety mandates. For North American installations, control panels are built inside NEMA-rated enclosures using UL-listed components, designed for native 480V, 60Hz, 3-phase systems to eliminate external transformer requirements.
For the European market, lines carry full CE certification, featuring dual-channel Category 4 safety interlocks, light curtains, and pneumatic pressure-relief dump valves that comply with the Machinery Directive 2006/42/EC. To support operations in regions with unstable power grids or high ambient humidity, we include integrated enclosure air conditioners that maintain internal temperatures at a stable 25°C / 77°F, along with heavy-duty line reactors to handle voltage fluctuations of up to ±15%.
The Financial Reality: Preventing 24-Month Precision Decay (TCO Analysis)
Purchasing decisions based primarily on low upfront costs can lead to significant long-term expenses. A detailed Total Cost of Ownership (TCO) analysis shows that lower-tier machines often experience a noticeable drop in precision after approximately 24 months of operation, resulting in increased material waste and reduced plant efficiency.
Let’s look at the financial performance of a medium-to-large plant producing 20,000,000 corrugated boxes annually, with an average blank weight of 0.4 kg / 0.88 lbs.
On an entry-level machine, frame flexing and belt stretching can cause the average scrap rate to rise to 3.2% by the third year of operation. This results in 256 metric tons / 564,383 lbs of rejected material per year. At a baseline board cost of $600 per metric ton / 2,204 lbs, this waste costs the plant $153,600 annually.
In contrast, our high-rigidity, stress-relieved steel line maintains its geometric alignment, keeping the scrap rate below 0.2% under identical production volumes. This limits material loss to just 16 metric tons / 35,273 lbs, or $9,600 in value.
This precision difference saves $144,000 per year in raw materials alone. Over a standard 5-year operating window, the high-rigidity system saves $720,000 in direct costs, fully offsetting the initial capital equipment premium while protecting plant profitability.
Preserving Flute Structural Integrity: Non-Crush Suction Feeding Protocols
Traditional folder gluers often utilize heavy rubber-coated nip rollers or mechanical pusher kickers to drive blanks into the machine. While effective for thin solid board, these aggressive feeding systems apply excessive vertical clamping force to corrugated sheets. This localized pressure crushes the internal flutes, leading to an immediate drop in the board’s structural integrity before it even enters the folding section.
To maintain structural integrity, our premium finishing lines utilize an advanced vacuum-assisted non-crush lead edge feeding bed.
High-output vacuum blowers apply a consistent downward suction force through high-friction, tungsten carbide coated feed belts. This configuration pulls the bottom liner flat against the feed table, allowing the machine to feed warped or heavy double-wall sheets reliably without requiring top-mounted pressure rollers.
By eliminating physical crushing forces, the board retains its full profile height, preserving 100% of its rated Edge Crush Test (ECT) and Box Compression Test (BCT) values. This ensures your finished boxes meet the strict stacking strength requirements demanded by major e-commerce and retail supply chains.
Frequently Asked Questions
1. How does your motion control loop handle fishtailing variations at high speeds?
Our system uses high-resolution optical tracking sensors at the entry point of the folding section to monitor sheet alignment. If a blank begins to rotate or lag by more than 0.2 mm / 0.0078 inches, the control system sends immediate micro-adjustments via the EtherCAT network to the independent left and right folding servo drives. This electronic speed compensation straightens the blank before the glue line sets, ensuring a square fold and eliminating fishtailing defects.
2. What is the average changeover time when switching between different box styles?
For a complete order changeover—such as switching from a standard RSC shipping box to a complex 4-corner crash-lock tray—the manual adjustment time on a legacy machine can exceed 45 minutes. Our automated system stores job parameters within the central touchscreen HMI. When a new order is selected, motorized actuators automatically adjust the position of the carriers, glue heads, and folding tools in under 3 minutes, allowing operators to initiate the next production run quickly.
3. Can your equipment process dual-wall BC-flute configurations without reducing line velocity?
Yes. Thanks to our high-rigidity annealed steel frame and 45 kW / 60 HP total drive configuration, the machine handles heavy double-wall boards up to a thickness of 12 mm / 0.47 inches with ease. The high-torque servo motors maintain stable operational speeds of 200 m/min / 656 FPM on double-wall configurations without overloading the electrical circuits or causing drive slips.
4. What is the expected service life of your high-friction wear components?
Our high-pressure electronic spray glue valves feature hardened impact needles designed for over 200 million cycles before requiring standard rebuild maintenance. The primary feeding friction plates are enhanced with a wear-resistant tungsten carbide matrix coating, extending their operational lifespan to over 36 months under continuous multi-shift production environments.
5. How do your control systems manage voltage spikes or brownouts in remote industrial zones?
Every control cabinet we manufacture includes dedicated line reactors and an independent isolation transformer to filter out incoming electrical noise and voltage spikes. If line voltage drops by more than ±15%, the integrated safety logic initiates a controlled deceleration sequence rather than an immediate emergency stop. This prevents mechanical component stress and avoids sheet jams within the folding section.
6. Can this folder gluer line be integrated with an existing mini flexo folder gluer ecosystem?
Yes. Our control platforms use open-architecture industrial protocols that allow for seamless integration with existing speciality folder gluer production lines. The system can synchronize its processing speeds with upstream printing stations and downstream counter-ejectors, allowing for fully integrated, single-pass inline production.
