Engineering Audit Criteria for Carton Box Flexo Printing Machine Manufacturers

Procurement teams evaluating global carton box flexo printing machine manufacturers must focus strictly on structural engineering indicators over initial purchase price. Plant profitability depends directly on a machine’s capacity to sustain high line velocities up to 180-450 m/min / 590 – 1476 FPM without losing registration accuracy. This technical review isolates the manufacturing standards required to maintain a zero-defect production line.

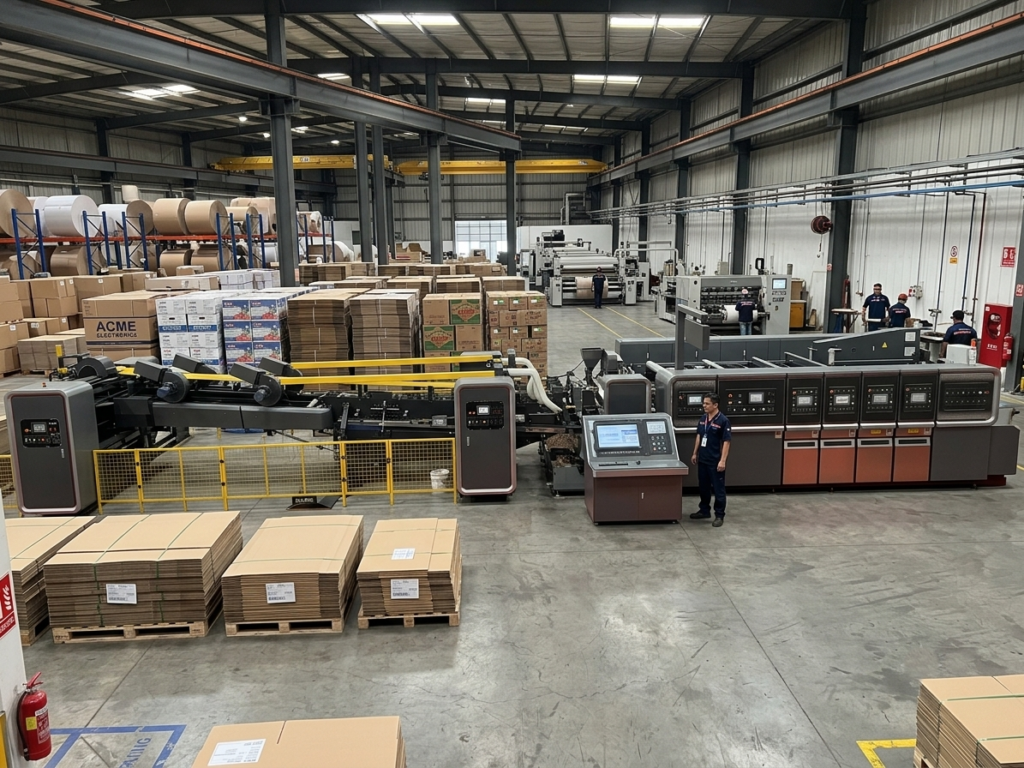

Top-tier carton box flexo printing machine manufacturers engineer integrated inline systems that feed, print, slot, crease, and die-cut corrugated sheets into finished shipping blanks in a single high-speed pass. Modern industrial flexo presses utilize vacuum-driven transfer architectures, ceramic anilox rolls, and enclosed chambered doctor blade systems to achieve high-fidelity graphics on A, B, C, E, and double-wall BC/BA flute corrugated board. Operating at production speeds from 180 to 450 sheets per minute, these multi-color printing lines maintain an color registration tolerance of less than or equal to ±0.5 mm, matching the high-throughput demands of modern e-commerce and industrial shipping box manufacturing.

Fast Check Product:https://gzsmartmachinery.com/product/flexo-folder-gluer-inline-printing-machine/

Maintaining a color registration window of less than or equal to ±0.5 mm at speeds exceeding 250 sheets per minute requires eliminating mechanical backlash. Traditional flexo presses rely on a single main drive shaft connected by a long train of mechanical gears; over time, gear wear introduces rotational drift.

To overcome this, leading manufacturers utilize independent multi-axis servo drive technology. Each printing station, along with the feeder and slotter modules, is driven by isolated, synchronized servo motors controlled via a centralized high-speed fiber-optic bus network. This setup allows the system to monitor and correct alignment errors instantaneously on every single board before it enters the next print station.

Traditional roll-to-roll transport mechanisms rely on localized physical compression to move corrugated sheets through the printing sections. This mechanical pressure inevitably crushes the internal fluting of the medium, reducing the structural thickness of the board and significantly lowering its Box Crush Test (BCT) performance.

Modern vacuum transfer systems eliminate these crushing pinch points entirely. The corrugated sheet is held securely from above or below by a continuous suction bed, sliding effortlessly between printing cylinders. This preserves the full geometric height of the internal flutes, ensuring that high-volume items like 5-ply moving boxes retain their maximum vertical stacking durability.

High-speed flexo printing units generate massive internal kinetic forces and rhythmic vibrations from the rotation of heavy anilox and printing cylinders. If the machine’s structural frame is too light, these vibrations translate directly onto the printing plate, causing ghosting, slurring, and premature wear on the slotting knives.

To ensure long-term stability, our heavy-duty machine frames are cast from solid 60 mm thick high-tensile structural iron plates. These side frames undergo extensive thermal stress-relieving and are precision-machined on advanced multi-axis CNC centers. This heavy-duty mass dampens harmonic frequencies completely, ensuring vibration-free operation and solid mechanical alignment across decades of three-shift industrial manufacturing.

Sourcing reliable packaging machinery requires verifying three non-negotiable engineering baselines during factory selection. First, the main chassis must utilize heavy-duty, stress-relieved wallboard metallurgy with a minimum thickness of 60 mm / 2.36 inches to absorb continuous kinetic forces. Second, the machine must run on a synchronous multi-axis servo protocol driven by an EtherCAT fieldbus network to eliminate mechanical gear play. Third, the manufacturer must integrate 100% traceably sourced international standard components, including NSK bearings, HIWIN linear tracks, and Schneider electric control configurations, guaranteeing local spare parts availability.

Chassis Engineering: Why Annealed Wallboard Metallurgy Dictates Registration Stability

High-speed flexographic converting units generate massive internal harmonic vibrations during multi-color printing and heavy rotary die-cutting actions. If a machinery manufacturer utilizes thin, non-annealed carbon steel plates or low-grade cast iron for the side chassis frames, these operational harmonics cause physical micro-deflections in the cylinder bearings. This structural movement changes the critical nip pressure between the anilox roll and the printing plate, resulting in immediate ink density variations and registration drift.

To maintain perfect structural alignment under continuous load, top-tier manufacturers construct machine frames from solid steel blocks with a minimum thickness of 60 mm / 2.36 inches.

• Stress-Relief Thermal Sequence: The fully machined side frames undergo a rigorous stress-relief cycle inside a computer-controlled furnace at temperatures reaching 600°C / 1112°F. This thermal processing alters the crystalline microstructure of the steel, releasing internal mechanical stresses generated during initial oxygen-cutting and high-feed milling phases.
• Geometrical Preservation: Eliminating internal stresses ensures that the machine frames maintain their absolute geometric parallelism over decades of 24/7 factory operation. This structural stability prevents the bearing housings from drifting out of alignment, protecting the machine’s long-term accuracy.
• Mass-Inertia Optimization: A complete 4-color inline configuration built to this engineering standard carries a total weight exceeding 15 metric tons / 33,069 lbs. This large physical mass absorbs high-frequency operational vibrations, ensuring smooth material transport across the entire printing line.

Feed Section Tribology: Vacuum Absorption and Tungsten Carbide Friction Plate Logistics

Traditional feeding mechanisms rely on mechanical pusher plates or heavy rubber-coated nip rollers to push corrugated blanks into the first printing unit. These legacy feeding methods apply concentrated vertical compression forces that crush the internal flutes of the board, weakening its structural integrity. This localized crushing causes an immediate drop in the sheet’s physical properties, reducing its final shipping stack strength.

To prevent structural board damage, top-tier engineering configurations utilize a full-vacuum suction feeding bed that eliminates top-down compression.

The bottom liner of the corrugated sheet is held flat against the transport line by high-volume negative pressure blowers pulling through specialized channels. The actual forward traction is driven by heavy-duty tungsten carbide coated feed friction plates embedded directly into the vacuum belts.

The micro-textured tungsten carbide coating provides an exceptional grip coefficient that prevents sheet slippage, even when processing dust-heavy or recycled liners. This mechanical traction introduces sheets into the print section with a placement accuracy of ±0.2 mm / ±0.0078 inches, preventing early register errors. Because the system applies zero vertical compression, the corrugated flutes retain their full structural profile, preserving 100% of the board’s rated Edge Crush Test (ECT) values.

Motion Control Architecture: Eliminating Transmission Backlash via EtherCAT Servo Synchronization

Mechanical gear trains running along the rear side of inline machines inevitably develop physical play and backlash over years of continuous operation. A gear wear tolerance deviation of only 0.05 mm / 0.0019 inches in the primary drive train can result in an unacceptable ±1.5 mm / ±0.059 inches print registration error at the final color station. This mechanical backlash forces operators to slow down production lines to avoid high rejection rates during multi-color halftone runs.

To completely eliminate mechanical gear wear, leading manufacturers utilize direct-drive multi-axis servo configurations managed by a centralized Delta or Siemens PLC system.

Each printing cylinder, anilox roll, and slotting tool shaft connects directly to its own independent, high-torque synchronous servo motor. The control system syncs these independent drives using a high-speed 100 Mbps EtherCAT industrial fieldbus network.

The central controller monitors high-resolution 24-bit absolute encoders in real time, executing micro-adjustments every millisecond to counteract tracking deviations. This electronic gear system holds color-to-color registration within a precise ±0.5 mm / ±0.019 inches window across the entire speed curve.

[Inquire for Direct-Factory Wholesale B2B Pricing & Lead Times — Contact Engineering Direct]

Ink Dynamics and Surface Preparation: Ceramic Anilox Control and Flexo-to-Glue Transitions

Maintaining clean print graphics requires continuous control over the ink film thickness delivered to the printing plate. Low-cost machinery builders often use a simple two-roller system consisting of a rubber fountain roll spinning within an open ink pan. This open design exposes the water-based ink to ambient plant air, which accelerates solvent evaporation and changes ink viscosity during long runs.

To ensure consistent color reproduction, top-tier machinery lines utilize enclosed dual-chamber doctor blade systems paired with laser-engraved ceramic anilox rolls.

Pneumatic lines apply a steady clamping pressure of 120 kg/cm² / 1706 PSI to hold the chamber blades against the rotating anilox roll, wiping away excess ink cleanly. The ink is pumped through a fully enclosed loop, which prevents solvent evaporation and shields the fluid from airborne paper dust.

Once the sheets complete the multi-color print path, they pass into the integrated inline folding and gluing module.

To ensure clean, high-speed folding without panel twisting, the folder section utilizes premium high-grip stretch-resistant folding belts. These specialty belts feature a high-friction tracking layer that maintains continuous contact with the board surfaces, preventing sheet slippage during high-speed folding sequences.

Adhesive application is handled by automated, multi-channel high-frequency electronic spray valves capable of cycling in under two milliseconds. These electronic valves apply clean, consistent glue dots at line speeds up to 180-450 m/min / 590 – 1476 FPM, eliminating tail-splashing and reducing adhesive consumption by up to 30% compared to traditional wheel systems.

Total Cost of Ownership: Analyzing 36-Month Structural Deflection and Scrap Rate TCO

Purchasing decisions based primarily on low initial equipment costs can lead to significant long-term expenses. A detailed Total Cost of Ownership (TCO) analysis shows that cheaper, non-annealed machine frames often develop structural alignment issues within 24 to 36 months of high-volume operation, resulting in an immediate increase in material waste.

Consider an integrated packaging facility producing 25,000,000 printed boxes annually, with an average blank weight of 0.40 kg / 0.88 lbs.

On a low-cost assembled line, mechanical wear on parts and subtle frame shifts can push the average print and slotting scrap rate to 4.5% by the third year of operation. This results in 450 metric tons / 992,080 lbs of ruined corrugated material per year. At a baseline board cost of $650 per metric ton / 2,204 lbs, this material waste costs the plant $292,500 annually.

In comparison, an inline system built with a heavy-duty, stress-relieved steel frame and precise servo synchronization maintains its alignment, keeping the scrap rate below 0.2% under the same production volume. This limits material loss to 20 metric tons / 44,092 lbs, or $13,000 in value.

This precision difference saves $279,500 per year in raw materials alone. Over a five-year production cycle, these material savings total $1,397,500, proving that investing in a high-rigidity system reduces long-term operational costs and improves overall plant profitability.

Frequently Asked Questions

1. How do top manufacturers prevent ink foaming inside chambered doctor blade blocks at high operating speeds?

Ink foaming occurs when air becomes trapped in the ink return line due to incorrect pressure settings or poor fluid dynamics. To prevent this, our systems utilize dual-stage peristaltic pumps that maintain a low-pressure, laminar flow throughout the closed loop. The return manifolds are angled at 45 degrees to prevent turbulent cascading, keeping the ink well-mixed and free of air bubbles without requiring chemical defoamers.

2. What is the real-world toolless changeover time when shifting between different corrugated profiles?

On automated lines, complete job changeovers take under 5 minutes to complete. The operator selects the pre-saved order profile from the central touchscreen HMI, which prompts the PLC to automatically adjust the vacuum transport guides, printing cylinder positions, ink film thicknesses, and slotting knife gaps via synchronized servo actuators.

3. Why are tungsten carbide coated friction plates superior to standard rubber feed belts?

Standard rubber feed belts wear down quickly when exposed to abrasive paper dust, leading to sheet slippage and register errors. Our specialized feed friction plates feature an industrialized tungsten carbide coating that resists surface wear. This durable material maintains a consistent grip coefficient over millions of feed cycles, reducing maintenance downtime and ensuring accurate sheet registration.

4. How does the machine handle voltage fluctuations on unstable regional power grids?

To protect sensitive electronics from voltage drops and spikes, our automation enclosures are equipped with heavy-duty input line reactors and dedicated isolation transformers. The central Delta PLC and servo drives operate on a stabilized internal DC bus, allowing the machine to ride through minor voltage sags of up to 15% without tripping out or corrupting encoder data.

5. What maintenance protocol prevents high-frequency electronic glue valves from clogging during extended weekend shutdowns?

Our electronic gluing systems feature an automated purging and nozzle-sealing sequence. When the line stops, pneumatic actuators slide a humidified sealing cap over the nozzles to prevent water-based adhesives from drying out and skinning over. For long weekend shutdowns, a one-touch flushing cycle circulates clean water through the entire valve manifold in under two minutes, keeping the fluid paths clear.

6. Can this flexo printing system be extended into a fully automated inline production line?

Yes. The open-architecture control platform allows individual printing modules to connect directly with downstream finishing equipment. For plants looking to streamline operations into a single-pass workflow, the system can be configured as a comprehensive carton box flexo printing machine manufacturers to handle feeding, multi-color printing, creasing, slotting, folding, and gluing in one automated production line.
