Evaluating an oem folder gluer machine supplier requires strict engineering scrutiny beyond standard marketing datasheets. Tier-1 industrial suppliers must satisfy three non-negotiable manufacturing baselines to prevent machine downtime and out-of-spec box rejects. First, frame metallurgy requires heavy-duty 40mm to 50mm / 1.57″ to 1.96″ solid steel side frames to suppress resonant vibration at high operating speeds. Second, the motion control architecture must utilize a multi-axis independent servo synchronization protocol (such as EtherCAT) rather than mechanical shafts. Third, global component standardization using Delta, Siemens, or Omron PLCs guarantees local component availability and rapid field-level diagnostic troubleshooting.

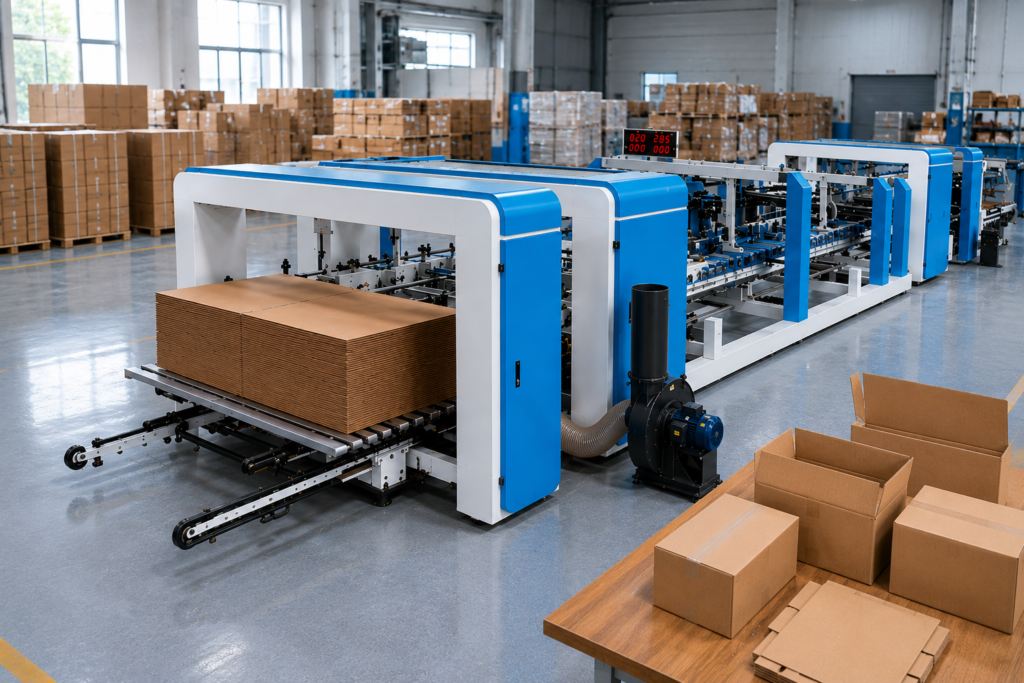

As a premier factory-direct OEM folder gluer machine supplier, we bridge the gap between heavy-duty mechanical engineering and bespoke packaging demands. Our facility specializes in original equipment manufacturing (OEM) and private-label design, offering global packaging plants fully customizable post-press conversion lines. We engineer these systems to handle everything from 200–800 gsm folding paperboard to 3-ply and 5-ply corrugated profiles. By operating as a direct source manufacturer, we offer modular structural configurations, localized electrical compliance, and custom PLC integrations that deliver up to a 35–40% CAPEX advantage over traditional retail distributors.
True OEM status relies entirely on manufacturing autonomy and open architecture engineering. Trading brokers supply fixed, off-the-shelf models that cannot be modified at a structural level. As a direct factory supplier, we execute in-house CNC heavy-frame machining, proprietary software layout, and specialized section modularity.
If a client requires a dedicated alignment section lengthened to handle highly asymmetrical e-commerce boxes, or scaled-down micro-carriers for miniature 50 mm pharmaceutical packaging, our engineering team modifies the physical blueprints before production. We provide comprehensive blueprint transparency, localized wiring schematics, and structural component trace records.
Fast Check Product:https://gzsmartmachinery.com/product/eco-automatic-folder-gluer-and-stitcher-machine/
Mechanical Framework: Why Wallboard Metallurgy Dictates Folder Gluer Lifespan
Structural rigidity forms the foundation of folding accuracy when running heavy double-wall corrugated board at 300 m/min / 984 FPM. Low-tier manufacturers reduce production costs by utilizing welded A3 steel plates that fail to dampen harmonic vibrations during high-speed transitions. These micro-vibrations gradually loosen mechanical locking collars, causing axial migration of the folding shafts over extended shifts.
High-end machine manufacturing demands a heavy-duty chassis constructed from QT450 ductile iron or solid SS400 steel plates. These raw plates undergo thermal stress-relieving normalization inside specialized kilns to prevent dimensional warping over a ten-year operational lifespan. Total machine mass must exceed 6.5 t / 14,330 lbs for standalone folding sections to guarantee inertial stability under continuous load.
Precise alignment of the drive shafts relies entirely on single-setup CNC machining centers. Machining the left and right side frames simultaneously ensures that bearing bores achieve concentricity tolerances tighter than 0.015 mm / 0.0005 inches. This structural precision prevents asymmetric bearing wear and ensures identical tracking geometry along both folding corridors.
Feeding Mechanism and Materials Science: Eradicating Fish-Tailing and Scissors Variance
The feed gate represents the primary point of failure for gap variation and fish-tailing in high-volume sheet plants. Standard rubber feed belts wear down quickly under the abrasive friction of raw kraft linerboard, causing irregular feeding intervals. To counteract sheet slippage, modern feeding units feature a high-vacuum suction bed divided into multiple zones with independent electronic volume control.
[Suction Feed Section] —> [Tungsten Carbide Friction Pads] —> [High-Vacuum Grid Bed]
|
v
Eliminates Sheet Slippage
The intake system utilizes high-durability Tungsten Carbide (WC) coated feed friction pads positioned alongside high-grip tensile folding belts. Polyamide traction layers inside these specialized belts prevent stretching under tension, preserving a constant linear velocity. This arrangement maintains precise control over the leading edge of the sheet, restricting total scissors variance to within ±0.5 mm / ±0.019 inches.
[Polyamide Traction Belts] ---> [Constant Linear Velocity] ---> Max Variance: ±0.5 mm / ±0.019"
For heavy board processing, mechanical side gauges cooperate with motorized pushers to realign skewed blanks before they reach the folding section. Extended folding sections utilize gradual-angle twisting belts that prevent sudden force transitions from cracking the outer liner of 8mm / 0.315 inch BC-flute boards. This geometric control ensures consistent gap uniformity across different production batches.
Electronic Control Protocols: Multi-Axis Servo Synchronization vs. Legacy Line Shafts
Legacy post-processing machinery relied on a central motor connected to a complex network of line shafts, universal joints, and timing belts. Backlash within these mechanical transmission components accumulates over time, making it difficult to maintain precise alignment during speed changes. When the main line slows down to accommodate bundle ejection, the timing discrepancy between sections causes unpredictable folding gaps.
Modern manufacturing replaces these mechanical linkages with dedicated, multi-axis EtherCAT servo synchronization protocols. Each functional module—feeding, scoring, folding, and stitching—is driven by its own independent synchronous servo motor. These digital drives communicate with a centralized master controller at refresh rates under 1 millisecond / 0.001 seconds, continuously adjusting position to match real-time line conditions.
[Central Master Controller]
|
+—(EtherCAT < 1ms)—> [Feed Module Servo Motor]
+—(EtherCAT < 1ms)—> [Scoring Module Servo Motor]
+—(EtherCAT < 1ms)—> [Folding Module Servo Motor]
+—(EtherCAT < 1ms)—> [Stitching Module Servo Motor]
Digital control systems enable automatic motorized adjustments during order changes via an onboard touchscreen interface. Operators select saved recipes from a local database, prompting the system to automatically position guide rails, scoring wheels, and glue heads within 90 seconds. This automated setup reduces manual intervention, increasing overall plant efficiency for short-run production environments.
Inquire for Direct-Factory Wholesale B2B Pricing & Lead Times
Precision Glue Application and Detection Systems
High-speed production lines require precise, non-contact adhesive application to eliminate adhesive contamination on the internal surfaces of finished boxes. Modern machinery incorporates electronic glue spray valves capable of handling cycle frequencies up to 800 Hz. These systems apply precise adhesive paths at production speeds exceeding 350 m/min / 1148 FPM without tailing or sputtering.
Adhesive delivery is governed by a variable displacement piston pump that links fluid pressure directly to the current line speed. Integrated linear encoders monitor board passage, activating the glue nozzles to maintain clean glue tab boundaries within ±1 mm / ±0.039 inches. This prevents glue starvation on the joint surfaces while avoiding excess squeeze-out that can cause adjacent boxes to stick together inside the delivery hopper.
[Variable Displacement Pump] ---> [Linear Encoders Track Board] ---> Adhesive Boundary: ±1 mm / ±0.039"
Quality control relies on high-resolution optical or UV tracking sensors integrated directly into the compression section. The inspection system verifies glue line presence, width, and continuity, flagging non-compliant boxes for removal. A high-speed pneumatic linear pusher ejects defective items without stopping the main production line.
Assessing OEM Customization and Global Supply Chain Traceability
A professional factory supplier must adapt mechanical configurations to match the specific product mixes of individual box plants. Sheet plants handling short-run, complex die-cut containers require modular configurations that support quick-change tooling additions. Conversely, high-volume integrated plants require heavy-duty configurations optimized for continuous operation on standard RSC layouts.[Sheet Plants: Short-Run] —> Modular Configurations & Quick-Change Tooling
[Integrated Plants: High-Volume] —> Heavy-Duty Configurations for Continuous RSC Layouts
Component traceability is essential for minimizing long-term maintenance down-time in international operations. High-tier manufacturers construct electrical cabinets using standard international components, including Festo pneumatics, Eaton switchgear, and SKF main bearings. This standard ensures that plant maintenance teams can source replacement components locally, reducing reliance on international shipping for wear items.
Furthermore, open-architecture control programs permit secure remote diagnostic access via encrypted VPN gateways. Factory field engineers can review PLC fault logs, update motion profiles, and isolate sensor failures across time zones. This remote support capability minimizes the need for on-site engineering visits and speeds up technical troubleshooting.
TCO Calculation and Factory Acceptance Testing (FAT) Standards
The total cost of ownership (TCO) of post-processing machinery depends heavily on energy efficiency and wear-belt replacement intervals. Modern folder gluers use regenerative servo drives that capture braking energy and redirect it back to the plant grid. This electrical design reduces total power consumption by up to 25% compared to legacy start-stop clutch systems.
[Regenerative Servo Drives] ---> Capture Braking Energy ---> Reduce Power Consumption by 25%
[Legacy Start-Stop Clutches] ---> High Energy Dissipation ---> Increased Mechanical WearBefore shipping, machinery must undergo a rigorous Factory Acceptance Testing (FAT) protocol at the manufacturing facility. The machine must run at least 5,000 sheets of the client’s specific corrugated board types at full rated speed. Engineers use precision dial indicators to confirm that slotting, folding, and gluing tolerances remain within specification during the entire test run.
When evaluating a long-term production partner, buyers should review the complete factory validation documentation. This transparency ensures that the equipment arrives ready to integrate smoothly into your plant’s production lines. For plants running high-volume orders, choosing a fully automated oem folder gluer machine supplier category setup provides the structural durability and rapid order change capabilities required to maximize line efficiency.
Technical Frequently Asked Questions (FAQ)
How does the machine control system prevent fish-tailing on heavy double-wall BC-flute boards?
Fish-tailing is controlled by implementing independent servo-driven correction belts immediately prior to the folding zone. These belts apply differential speed corrections based on real-time optical tracking of the sheet’s leading corner. This adjustment corrects angular misalignment before the adhesive tab cures, keeping squareness variations within ±1 mm / ±0.039 inches.
What are the standard maintenance intervals for the high-vacuum feeding section friction belts?
Under normal operating conditions processing standard kraft linerboard, the primary feed belts have an operational lifespan of 2,000 to 3,000 working hours. Utilizing built-in air knives to continuously clean paper dust from the belt surfaces helps extend these replacement intervals. Operators can replace the quick-change belt modules within 20 minutes / 1200 seconds without dismantling the drive shaft assembly.
Can the control software interface directly with existing plant-wide ERP and MES systems?
Yes, the underlying Delta or Siemens PLC platforms utilize open communication standards like OPC UA and Modbus TCP/IP. This connectivity allows the machine to share real-time production counts, running speeds, fault logs, and setup times directly with your factory Management Execution System (MES). This automated data exchange simplifies order tracking and scheduling across the plant.
Inquire for a Detailed Component Traceability Sheet & Direct-Factory Production Quotation
